/mcp-ui — Swagger UI for MCP (HTMX / HATEOAS)

Status: v0 shipped · August 2026 · 7th surface of mcp-api-adapter
Path: GET /mcp-ui (adapter HTTP process)
Depends on: ListTools + tool inputSchema (same catalog as /docs and /graphiql)
Implementation: packages/mcp-api-adapter/src/mcp-ui-*.ts — catalog page + execute fragment, form UX (required/optional/defaults/Advanced), templates for search / memory_* / cache / audit. Deferred: nested object/array UIs, file upload/IDP, SSE progress, agent-generated UIs, ATR scoping.

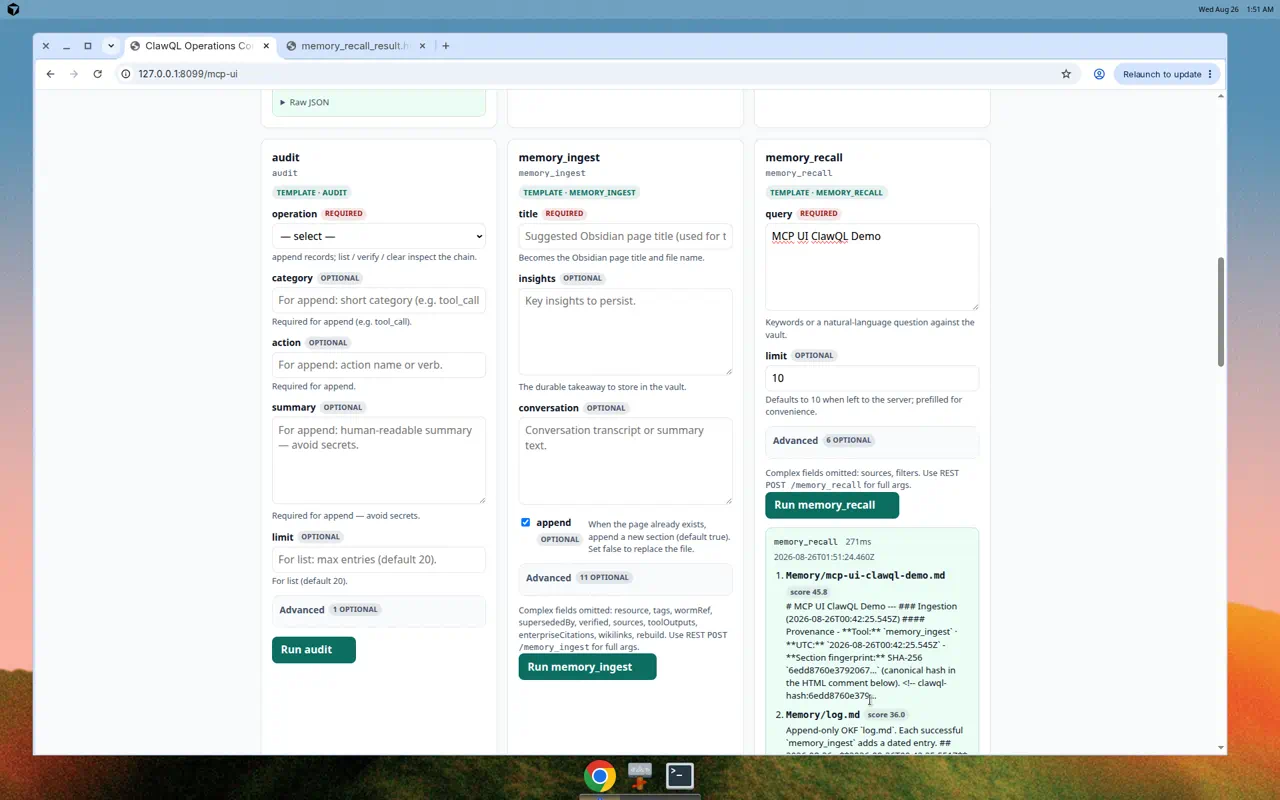

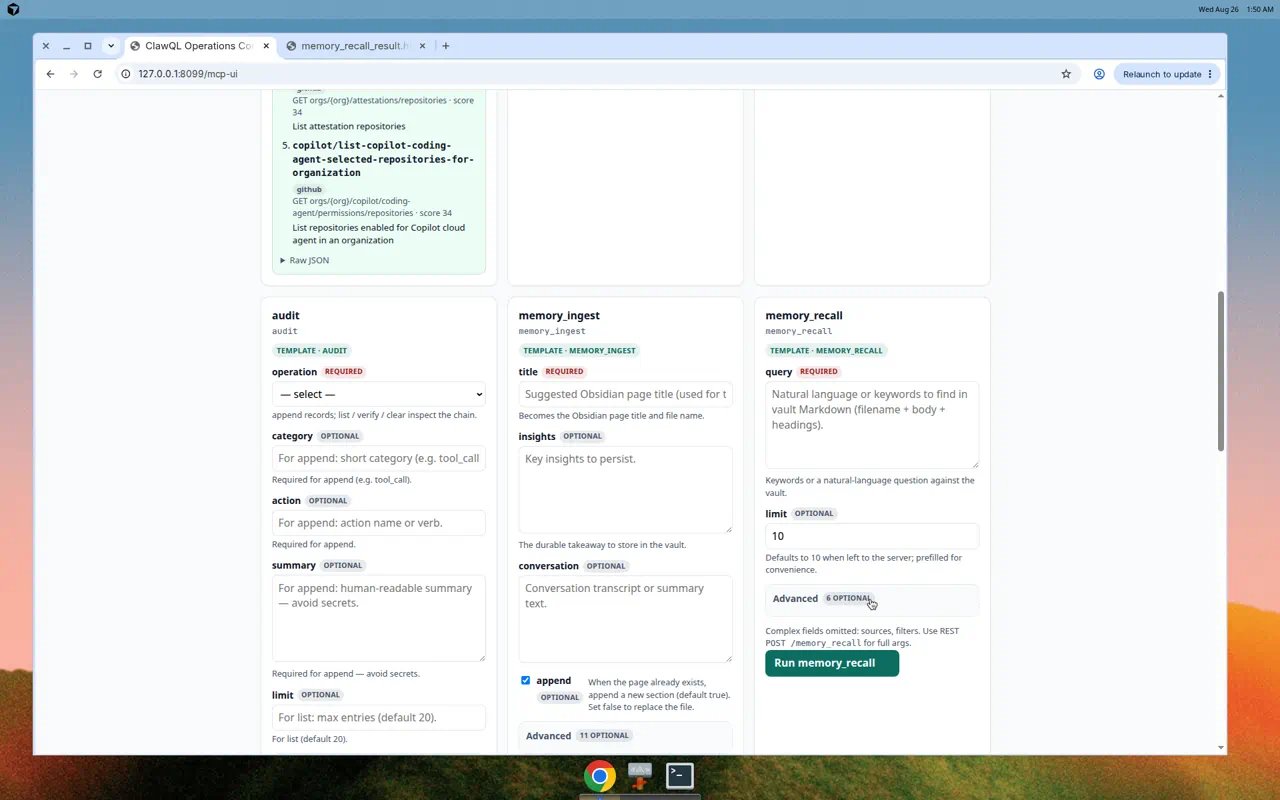

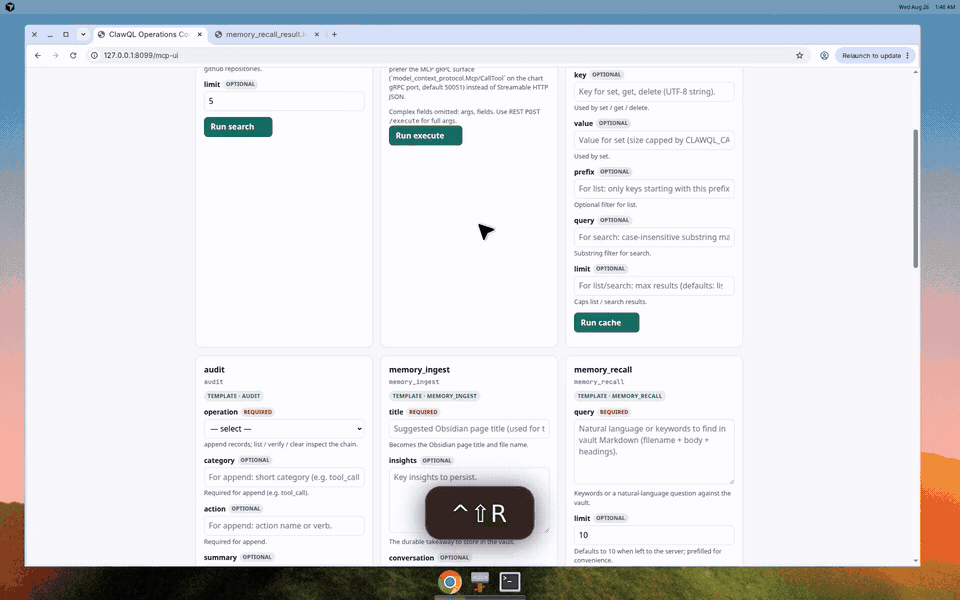

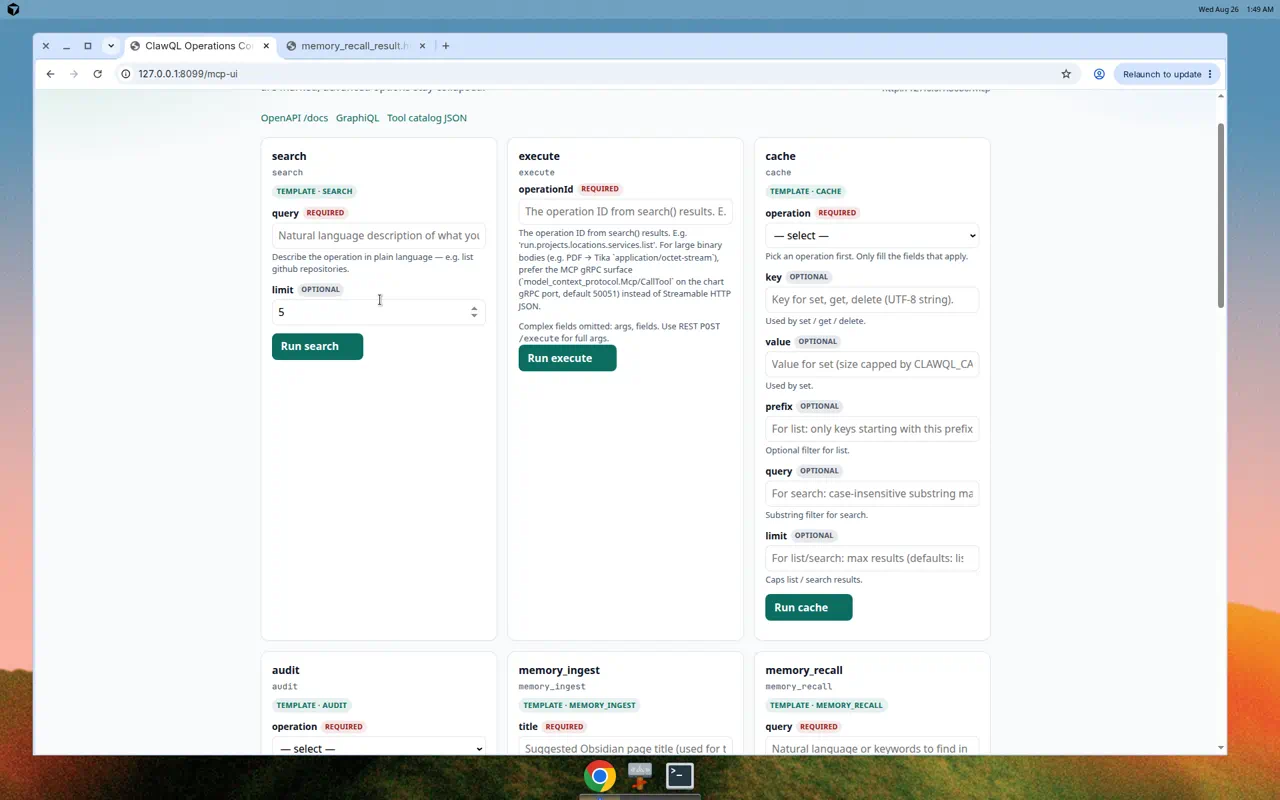

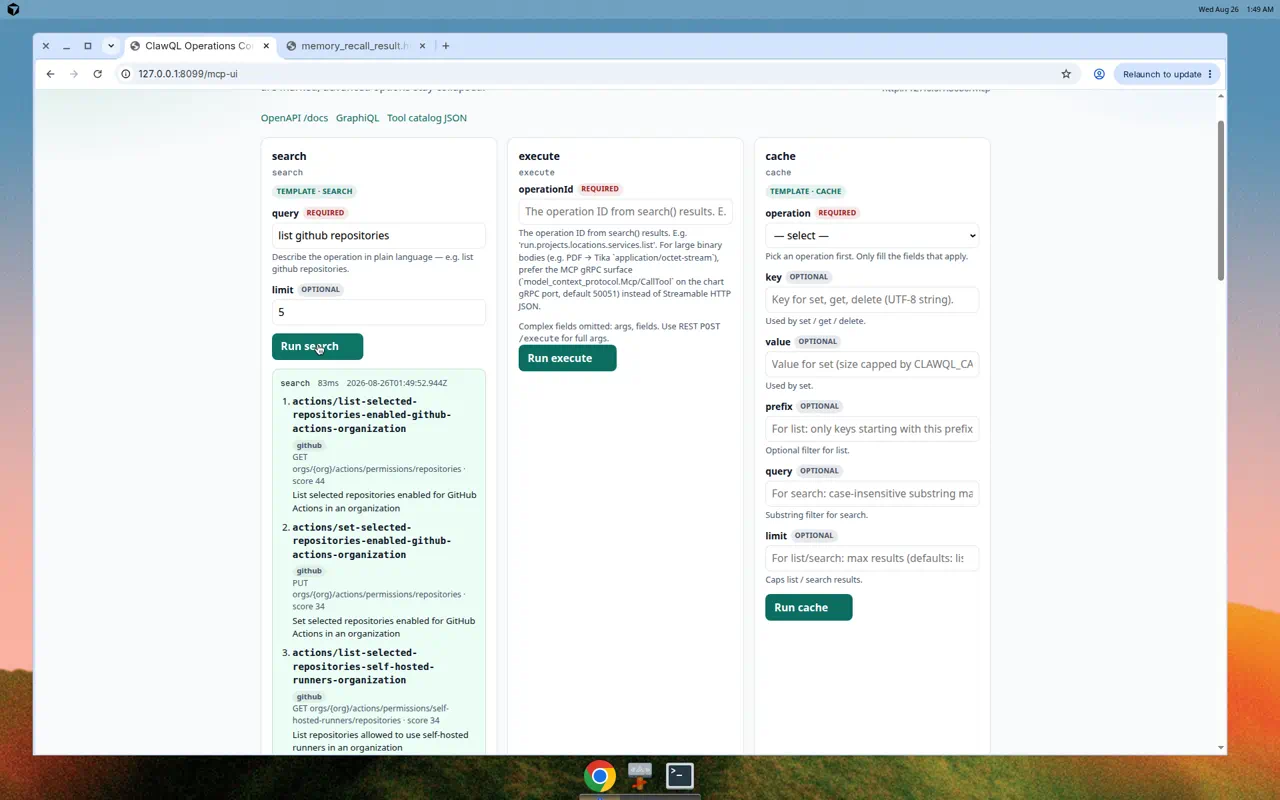

Screenshots

Live ClawQL Operations Console (mcp-api-adapter pointed at ClawQL Core):

1. What this is

/mcp-ui is the Swagger UI for MCP: an auto-scaffolded, browser-navigable playground that ships inside mcp-api-adapter. Point the adapter at any MCP server; open /mcp-ui; every tool appears as a card with a form generated from its inputSchema. Submit runs the tool; the result renders inline. No separate playground product, no React SPA, no build step — server-rendered HTML with HTMX for interactivity.

Any API / CLI / gRPC / WebSocket
         │
    ClawQL Core (indexes → MCP tools)
         │
    mcp-api-adapter
         │
    GET /mcp-ui  — interactive forms for every tool
                   generated from inputSchema

Swagger made REST explorable in a browser. /mcp-ui makes any API ClawQL has turned into MCP explorable the same way — regardless of the original protocol.

2. Why not the existing MCP UIs

External playgrounds (MCP Playground, MCP Explorer, Chrome extensions) and MCP-UI / MCP Apps (SEP-1865) solve a different problem: you point a separate host at an MCP server, or the server delivers rich ui:// resources into an MCP host iframe.

What nobody ships today:

/mcp-ui is embedded, zero-config, and automatic — the same way /docs appears when you run the adapter. That is the differentiation.

3. Surface contract

3.1 Routes

Disable with --no-mcp-ui. Override path with --mcp-ui-path / MCP_API_ADAPTER_MCP_UI_PATH (default /mcp-ui).

Auth: same API key gate as /docs and /graphiql when configured.

3.2 Catalog → form mapping

One inputSchema, three representations already exist (OpenAPI, GraphQL, REST). /mcp-ui is the fourth:

Unknown or awkward schemas fall back to a JSON textarea with the raw arguments object (same escape hatch idea as GraphQL callTool).

3.3 HTMX / HATEOAS shape

GET /mcp-ui → renders the tool catalog as a page
  └─ one card per tool
       ├─ name + description
       ├─ form fields from inputSchema
       └─ Submit → hx-post="/mcp-ui/execute/{toolName}"
                → hx-target="#result-{toolName}"
                → result fragment + next-action links

Example result fragment (illustrative):

<div id="result-memory_recall">
  <p>Found 3 notes matching "escrow non-compete"</p>
  <ul>
    <li>
      MAT-2401 — Escrow 12%, NC 24mo
      <button
        hx-post="/mcp-ui/execute/memory_ingest"
        hx-vals='{"title":"MAT-2401 follow-up"}'
        hx-target="#result-memory_ingest"
      >
        Ingest finding
      </button>
    </li>
  </ul>
  <a hx-get="/mcp-ui/tools/memory_recall" hx-target="#card-memory_recall">
    Search again
  </a>
</div>

HATEOAS here means next actions travel with the response — not a separate schema the human must memorize. MCP tool discovery is already hypermedia for agents; /mcp-ui expresses the same idea in HTML browsers already understand.

4. ClawQL chain (the real product story)

Every existing MCP UI assumes an MCP server already exists. ClawQL + /mcp-ui closes the loop:

1. Ingest any REST / GraphQL / gRPC / CLI / WebSocket source into ClawQL Core.
2. Expose the resulting tools through mcp-api-adapter.
3. Explore every operation in a browser at /mcp-ui — forms, buttons, inline results.

A new teammate can open one URL and call Salesforce, GitHub, internal gRPC, and legacy REST through the same interface — without learning each protocol or installing Postman collections.

5. Implementation notes (draft)

• Templating: server-side HTML only (no SPA). Prefer a small Effect-friendly render helper in packages/mcp-api-adapter — no React/Vite dependency in the adapter process.
• HTMX: load from a pinned CDN or vendored static asset under /mcp-ui/assets/htmx.min.js.
• Reuse: form field generation should share schema-walk helpers with OpenAPI/GraphQL builders where practical (one walk, multiple emitters).
• Safety: HTML-escape all tool names, descriptions, and result text. Never eval result content as HTML unless explicitly marked safe structured content later.
• Streaming: v1 is request/response fragments. SSE progress for long tools can reuse Streamable HTTP infrastructure in a later revision.
• Proof: clawql-payments /credits/* already demonstrates HTMX fragment UX inside ClawQL — generalize that pattern to arbitrary MCP catalogs.

5.1 Effect-TS

Render and execute paths stay Effect-based inside the adapter package; Express (or Node http) handlers remain thin façades that run*Effect at the host boundary — same rule as the rest of ClawQL.

6. Non-goals (v1)

7. Acceptance (draft)

1. mcp-api-adapter --stdio -- <server> → GET /mcp-ui lists every tool from ListTools.
2. Each tool card’s form fields match top-level inputSchema properties (with JSON fallback).
3. Submit invokes the same call path as POST /\{toolName\} and renders a result fragment.
4. With API key set, /mcp-ui requires the same auth as /docs.
5. --no-mcp-ui removes the surface; /docs and /graphiql still work.

8. Relationship to other surfaces

Further reading

• User guide: mcp-api-adapter.md
• Design: ../design/mcp-api-adapter.md
• Essay draft: ../gtm/pragmaticvectors/mcp-api-adapter.md
• Protocol Fabric: protocol-fabric.md
• QR (8th surface, planned): ../streams/clawql-qr-stream-transport.md

/mcp-ui · August 2026 · mcp-api-adapter 7th surface
