ClawQL Protocol Fabric

Status: Shipped (loop proven August 2026)
Depends on: ClawQL Core (search / execute / memory_*) · mcp-api-adapter @0.6+ · mcp-grpc-transport
Smoke: scripts/dev/smoke-protocol-fabric-loop.sh · design notes in protocol-fabric-loop-benchmark.md

One-liner

ClawQL’s Protocol Fabric connects any protocol to any other protocol with MCP as the common intermediate representation.

Not a gateway product name for one port — the bidirectional protocol translation layer formed by Core + mcp-api-adapter.

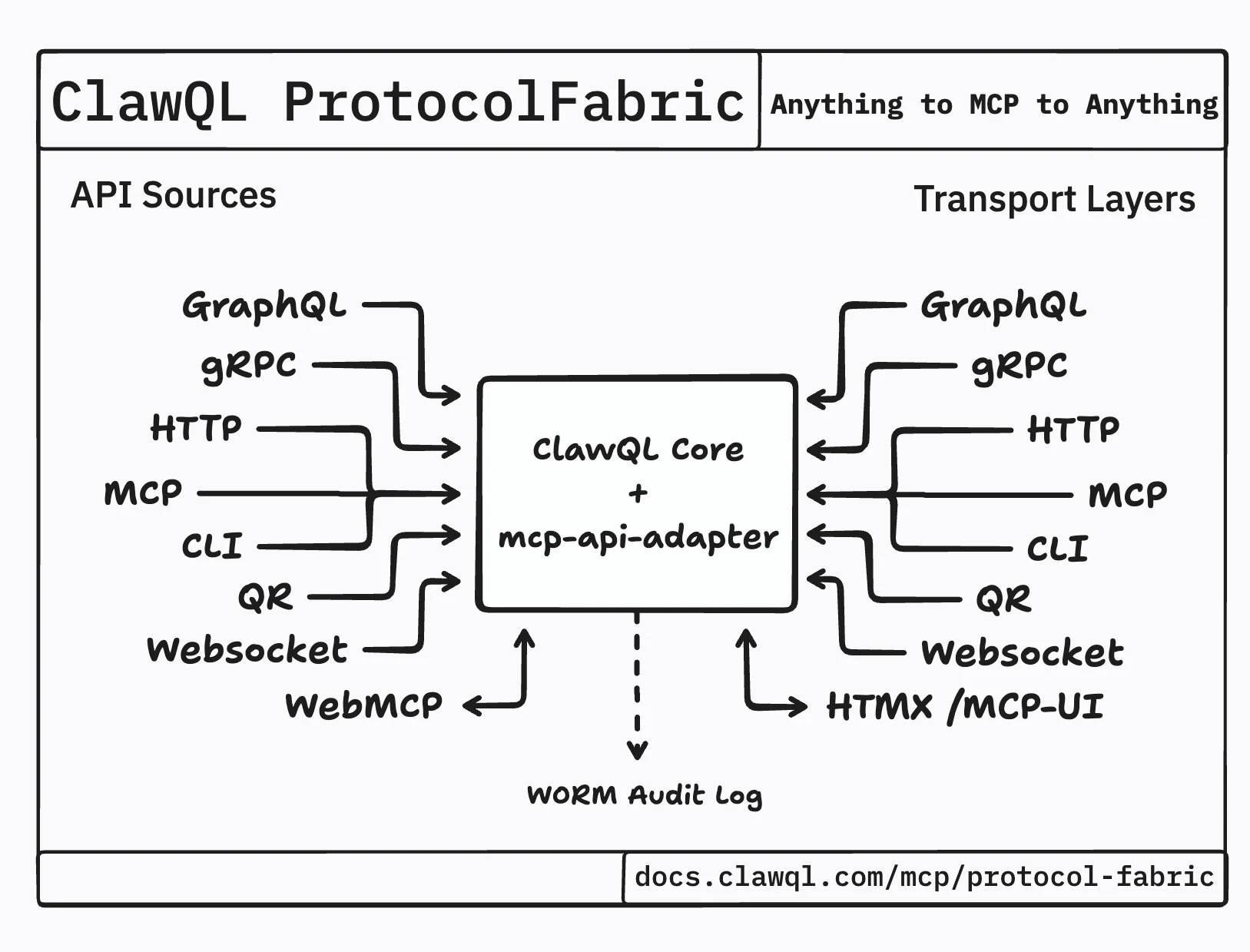

Both directions

Any input protocol
  CLI · OpenAPI · GraphQL · gRPC · WebSocket · MCP
           │
           ▼
    ClawQL Core (→ MCP)
           │
           ▼
      MCP (common IR)
           │
           ▼
  mcp-api-adapter (MCP →)
           │
           ▼
Any output protocol
  CLI · OpenAPI · GraphQL · gRPC · WebSocket · MCP

Direction	Package	Claim
Any API → MCP	ClawQL Core	Agents discover and call upstream REST / GraphQL / gRPC / CLI via MCP tools
MCP → any API	`mcp-api-adapter`	Wrap any MCP server (any language) and expose OpenAPI, GraphQL, `/mcp`, gRPC, WebSocket, gen-cli

Together: gRPC service ↔ GraphQL consumer, CLI ↔ REST, OpenAPI ↔ gRPC, WebSocket event ↔ MCP tools — any combination, either direction.

Proven end-to-end loop

In August 2026 we ran a deterministic smoke that crosses both fabric directions in one path and lands a real vault note:

WebSocket event
    → mcp-api-adapter (/ws tools/call)
    → clawql-mcp execute(cli__fabric_event__run)
    → gen-cli subprocess
    → POST /memory_ingest on the adapter (REST)
    → clawql-mcp memory_ingest
    → vault note with marker FABRIC_LOOP_*
    → memory_recall finds the marker

What that proves in plain language:

WS → MCP — a WebSocket client calls execute through the adapter without speaking MCP itself.
MCP → CLI — Core runs a CLI custom source (cli__fabric_event__run) that shells out to gen-cli.
CLI → REST → MCP — gen-cli POSTs adapter REST /memory_ingest; the adapter translates that back into the MCP memory_ingest tool.
Data lands — the vault receives the event marker; memory_recall returns it. Smoke exit code 0 on main.

This is not an LLM benchmark cell. It is a protocol loop: if any hop fails, the marker never shows up in recall.

Topology (recursion-safe)

Layer	Role
A ClawQL MCP	Real tools: `execute`, `memory_ingest`, `memory_recall`, …
B mcp-api-adapter	Wraps A — OpenAPI + GraphQL + `/mcp` + gRPC + WebSocket `/ws`
C gen-cli	Thin CLI generated from B’s catalog; POSTs to B’s REST surface
D CLI custom source	`sources.json` → one op that runs C with `memory_ingest` baked into `cliArgs`

Why this does not recurse: execute spawns gen-cli → REST POST /memory_ingest → adapter CallTool memory_ingest. That path never calls execute again. Do not point gen-cli at an execute of the same CLI op.

WS tools/call execute
        │
        ▼
 clawql execute(cli__fabric_event__run)
        │ spawn
        ▼
 gen-cli memory_ingest --args '{event…}'
        │ POST
        ▼
 adapter /memory_ingest
        │
        ▼
 clawql memory_ingest  ← terminal hop

Run it locally

From the repo root (after npm ci / workspace builds the smoke triggers):

scripts/dev/smoke-protocol-fabric-loop.sh

Pass criteria the script enforces:

Adapter /healthz lists websocket in surfaces
Two distinct WS execute calls return ok: true
memory_recall finds the FABRIC_LOOP_* markers
Exit 0

Default ports: ClawQL MCP 18080, adapter 18090 (overridable via CLAW_PORT / ADAPTER_PORT). The script clears leftover listeners on those ports before starting.

WebSocket message shape

{
  "id": "evt-1",
  "tool": "execute",
  "arguments": {
    "operationId": "cli__fabric_event__run",
    "args": {
      "args": [
        "--args",
        "{\"title\":\"Fabric loop evt-1\",\"insights\":\"marker FABRIC_LOOP_evt-1\",\"tags\":[\"fabric-loop\"],\"append\":true}"
      ]
    }
  }
}

Reply: \{ "id": "evt-1", "ok": true, "result": … \}.

Direct tool: "memory_ingest" over WS is valid but does not prove the CLI custom-source hop — the smoke uses execute for that.

Why “Protocol Fabric” (not two package names)

Marketing and GTM need a single claim. Explaining “Core plus mcp-api-adapter” every time buries the product.

Use: “ClawQL Protocol Fabric — MCP as the connective tissue between protocols.”
Avoid: Calling Core an “OpenAPI gateway” or the adapter “the OpenAPI gateway” without direction — those collide.

Competitive framing

Alternative	What it does	Gap
mcpo (Open WebUI)	MCP → OpenAPI only (Python)	One surface, one direction
Kong / Apigee	Classic protocol translation	No MCP IR, not agent-native
APIAgent / OpenAPI→MCP proxies	APIs → MCP	Inverse of the adapter; not multi-surface outward

Nobody else ships both directions with MCP as IR and the full multi-surface outward adapter in one product story.

Enterprise Service Buses reduced N×M integrations to N+M via a common bus. Protocol Fabric is the agent-era analogue: MCP is the message format, full protocol surface on both sides.

Language-agnostic

The adapter is implemented in TypeScript (npx mcp-api-adapter). Upstream MCP servers may be Python, Go, Rust, or anything that speaks MCP over stdio, Streamable HTTP, or gRPC. Users do not write TypeScript to use the fabric.

Adapter guide: mcp-api-adapter.md
Custom sources (CLI ops into Core): getting-started/custom-sources.md
Streams (event-driven autonomous execution): streams/clawql-streams.md
GTM positioning: gtm/protocol-fabric.md
Loop design / non-goals: design/protocol-fabric-loop-benchmark.md
